SAW CUTTING
CAPABILITIES
SAW CUTTING
BPC has a variety of saw cutting equipment. Whether your requirements are slugs to gram weight, length tolerances, or gang cutting of 60 ft. bundles, BPC has the equipment to meet your target needs while providing the most efficient cutting process. Bundle cutting with band saws is a highly efficient and cost effective method for processing multiple steel bars simultaneously.
BANDSAW CUTTING
- Remove mill sheared ends and prep for downstream operations.
- Provide dead length tolerances, generally 1” tolerance.
- Allows mill to roll longer lengths.

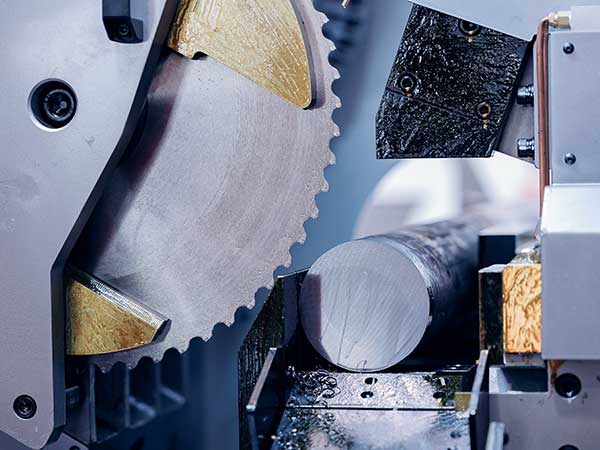

PRECISION SAW CUTTING
- Precision cold sawing of shafts or slugs
- Gram weight tolerance or length specific
- Diameter Range of .625” to 4”
- Lengths from .125” to 120”
- Length Tolerance of +/-.002”
- Squareness equal to or better than the length tolerance (.004”)
TARGET PRODUCTS:
- Hot & Cold Forming Blanks
- Shaft Blanks
- Short-Cut-Grind Blanks
- CNC Machining/Magazine Bar Feeds
- Dead Length Bundles
Please inquire for specific cutting capabilities
| Process | Warren, Michigan | Monroe, Michigan | Newton Falls, Ohio | Wickliffe, Ohio | Chicago Hts., Illinois |
|---|---|---|---|---|---|
| SAW CUTTING – BUNDLE CUT | |||||
| MAX BUNDLE WIDTH | 20.5″ | 20.5″ | 24.5″ | 25″ | 20.5″ |
| MAX LENGTH | 45′ | 40′ | 40′ | 50′ | 45′ |
| PRECISION SAW CUTTING – SLUGS & SHAFTS | |||||
| *INQUIRE FOR SPECIFIC CUTTING CAPABILITY | ✔ | – | ✔ | ✔ | – |
| Click Here to DOWNLOAD a Full Capability Summary by Location | |||||
